| DSP CONTROLLED POWER AMPLIFIER WITH 4 WORKING MODES : | - 1 MODE FOR ALL TYPES OF SPEAKERS ---------------- 3 SPECIFIC MODES FOR ATOHM "GT-SERIES" SPEAKERS |
| Nominal power output / 4 ohms (normal mode) : | 2*700W rms |
| Nominal power output /8 ohms (normal mode) : | 2 * 350W rms |
| Nominal power output ( GT1 GT2 GT3 mode) : | GT1 ------------- 220 Wrms GT2 ------------- 280Wrms GT3-------------- 700Wrms |
| Max. peak current (stage threshold) : | 2 * 30 A |
| Frequency response : | 2Hz - 45 kHz (-3dB) |
| Impedance : | load 4-16 ohms (3ohms mini) |
| Harmonic distorsion : | inf. to 0.06% |
| Signal / Noise ratio : | 110 dB |
| Damping factor : | Sup. to 1000 ( @1000Hz /4 ohms) |
| Max input level ( XLR and RCA inputs) : | 22 dBu |
| Device intelligence : | 32 bits -295 mHz - Sigma DSP |
| Sampling frequency : | 96 kHz - 24bits audio resolution |
| High pass crossover on power output (all mode) : | switchable with choosable frequencies 60 - 80 -100 Hz and 12 or 24dB/oct slopes |
| clipping limiter " Soft clipping " ( all mode) : | U-GUARD processing |
| Excursion active control ( mode GT1-GT2-GT3 only) : | X-GUARD processing |
| Bass response optimization/ extension (mode GT1-GT2-GT3 only) : | X-TEND processing (ajustable by potentiometer ) |
| Amplifier thermal protection ( Normal mode ) : | T-GUARD processing + power stages safety circuit |
| Loudspeakers thermal protection ( mode GT1 GT2 GT3 only ) : | T-GUARD processing - 18dB level attenuation with auto return after 20 sec. |

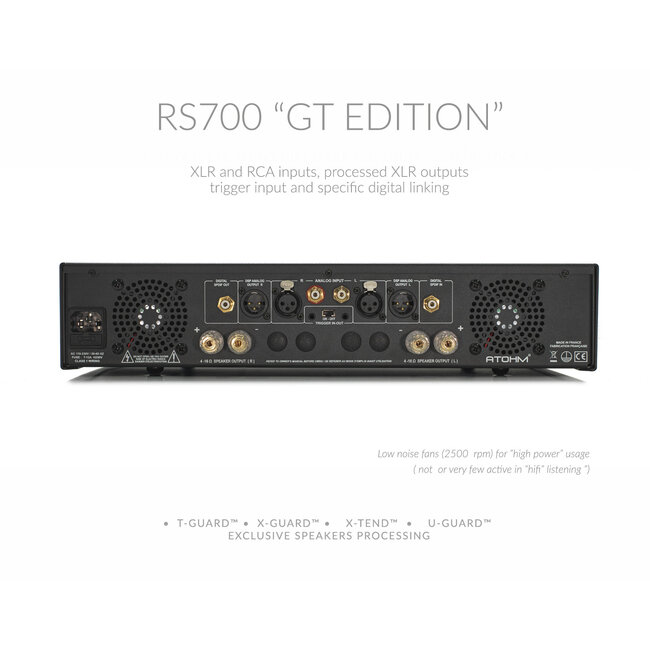

| " TRIGGER" input : | 12Vdc on 3.5mm jack |
| Supply voltage : | (auto) 110-220V / 50-60Hz |
| Dimensions : | 450*88*348 (mm) |
| Weight : | 8.7 kg |
